All utrustning kundanpassas, nedanstående är ett exempel på en Gin still 100 liter.

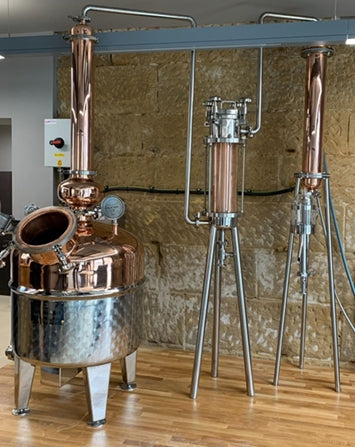

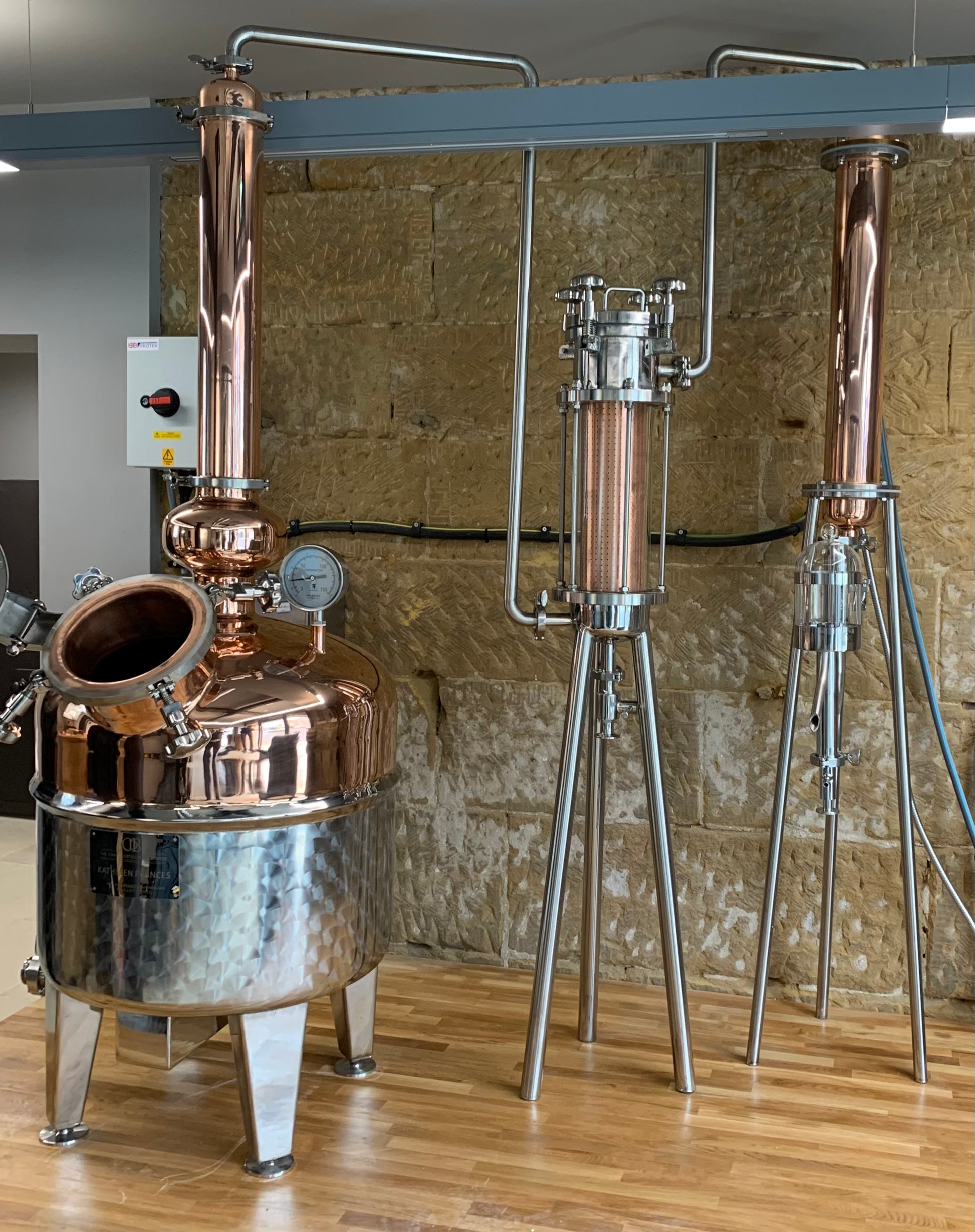

Specification: 100L Gin Still with Gin Basket
● 100L Distillation Pot
● Pot dimensions: Φ650mm*500mm
● Shape: Copper spherical dome top with stainless steel flat bottom
● Thickness: δ3, 100% TIG welding with pure argon gas shielding
● Interior finish: Overall polished to 0.2 μm
● Copper Onion Cap: Made of copper, thickness δ3, top diameter 250mm, tri-clamp interface 105mm, with 105mm copper column
● 5L botanical basket (glass cylinder and copper basket)
● Shell: Fully welded copper; thickness = 3mm
● 100% TIG welding with pure argon gas shielding
● Tank leakage test by water & pressurised gas
● Jacket leakage test by water & pressurised gas
● Equipped with a temperature gauge
● Condenser Column: Copper, size: diameter 102mm, height 600mm, equipped with SUS304 stainless steel parrot and support base
● Installation dimensions (L*W*H): 1.65m * 0.8m * 1.8m
● Stainless steel control box 400V 50 HZ ● 10 KW electric heating element
För mer info och offert maila mikael@vingardsbutiken.se
www.thecraftdistillingbusiness.com
